Large Wire Bonding Wedges

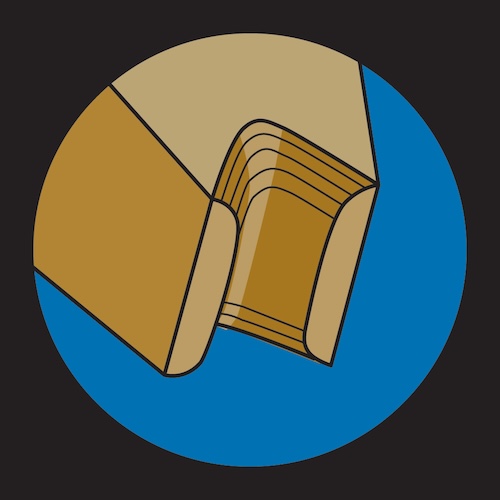

Deweyl Tool offers a wide range of Large Wire bonding tool solutions for Manual, Semi-Automatic, and Automatic bonding equipment. A minimum of three material choices are available: Tungsten Carbide, Titanium and Ceramic. Applications involving Large Wire typically consist of wire diameters of .003” (75 um) and larger, using Au, Al, Cu, and Pt. The CL style with a VG foot is most commonly used for automatic applications. For manual applications, the CS style with a GW foot is most common. Vertical Feed wedges are available where indicated.



standard & vertical feed wedge options

Manual & Semi-Automatic | Automatic

The tools shown in this gallery are basic configurations. Please contact us for your custom tool needs. Rollover image thumbnails for a larger view. Click on the PDF links to view catalog pages.

Manual & Semi-Automatic

AS, AS-V tools

AS, AS-V

(132 KB) PDF

C, C-V tools

C, C-V

(150 KB) PDF

CS, CS-V tools

CS, CS-V

(163 KB) PDF

Manual & Semi-Automatic Large View

KS tool

KS, KS-V

(153 KB) PDF
